Main Takeaways
- An intermittently bonded ribbon line enables flexible, high-density fiber arrangements.
- Separated bond points maintain optical fiber order without creating a rigid ribbon.
- Flexible ribbon structures allow manufacturers to place more fibers inside compact circular cables.
- Mass fusion splicing is faster when fiber order remains stable and clear.
- Ribbon cable systems support data centers, telecom backbones, and fiber access networks.
Intermittently Bonded Ribbon Production Line Overview
Intermittent bonded ribbon production enables the creation of fiber designs that balance compactness with usability. This method involves applying bond points at controlled intervals, allowing for the movement of fiber subunits between these points.
This production approach supports the incorporation of a higher number of fibers within constrained duct spaces. It also preserves the organized ribbon structure, essential for efficient splicing and cable assembly processes.
What Is An Intermittently Bonded Fiber Ribbon?
An intermittent bonded fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain unencumbered, enabling the ribbon to adopt various configurations without rigidification.
This ribbon format is commonly described as a rollable, flexible, or spider web ribbon. It differs from the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
For splice preparation, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers form compact bundles, optimizing space utilization within the cable.
Why High-Density Networks Use Flexible Ribbon Technology
Network designers frequently face the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure allows ribbon groups to fit into smaller cable cores, preserving fiber order.
A fiber density ratio provides a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding enhances this ratio, allowing ribbon groups to occupy available spaces within the cable.
For field installation teams, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.
Intermittent Bonded Ribbon Production Line
| Ribbon Design Feature | Flexible Bonded Design | Continuously Bonded Ribbon |
|---|---|---|
| Bond pattern | Separated bonds at controlled intervals | Bonding maintained continuously along the ribbon |
| Fiber configuration between bond points | Can bend, roll, or fold for dense packing | Stays mainly flat and planar |
| Splicing configuration | Can return to a flat format for mass fusion splicing | Is continuously maintained in a flat ribbon shape |
| Cable packing role | Allows compact and flexible subunit positioning | Uses a more rigid ribbon stack arrangement |
| Common cable use | Compact high-density and flexible ribbon cable structures | Standard flat ribbon cable designs |
Intermittently Bonded Ribbon Materials And Construction
An intermittent bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture supports compact cable arrangements while allowing effortless separation during handling, routing, and splicing.
The selection of materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must keep its fibers properly positioned without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Arrangement
Intermittently bonded ribbons can contain 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber ribbon commonly uses six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
Controlled gaps introduced between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Ribbon Construction Element | Typical Configuration | Process Purpose |
|---|---|---|
| Number of fibers | 4, 8, 12, 24, or up to 36 fibers | Supports required cable density and fusion splice capacity |
| Subunit configuration | Two adjacent fibers per optical fiber subunit | Allows controlled separation between fiber groups |
| Subunit fiber spacing | Contacting fibers or spacing of no more than 1.5 fiber diameters | Keeps the subunit profile compact and stable |
| Spacing between subunits | A typical range of 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
UV-Curable Resin With Wet-On-Wet Bonding
The subunit coating and bond material frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
Wet-on-wet bonding produces a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
The UV-curable materials can combine at the interface before curing. This facilitates molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Core Equipment In An Intermittent Bonded Ribbon Production Line
An optical ribbon line integrates advanced motion control with meticulous material handling. Each station helps fibers stay clean, aligned, and stable from the initial payoff to the final winding.
The production equipment supports adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to manufacture customized flexible ribbon, preserving the integrity of the fiber order.
Fiber Payoff With Tension Control
Fiber payoff systems feed individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
During ribbon production, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Discrete Bond Applicator And Coating Die
A coating die places a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
The discrete bond applicator subsequently deposits a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Production Equipment | Core Function | Production Benefit |
|---|---|---|
| Payoff and tension unit | Delivers fibers while maintaining regulated tension | Minimizes twisting and uneven fiber loading |
| Fiber coating die | Applies coating to form defined fiber subunits | Supports stable subunit width and geometry |
| Discrete bond applicator | Applies resin at controlled intervals | Creates flexible links between adjacent subunits |
| UV curing and take-up unit | Handles UV curing, cooling, inspection, and final winding | Helps protect bond quality and organized fiber placement |
UV Curing, Cooling, And Ribbon Winding Equipment
UV curing lamps harden the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling equipment lowers ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
Ribbon winding equipment packages the finished ribbon with low, even tension. Proper winding preserves the finished bonded structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Alignment, Preparation, And Color Sequence Management
A stable ribbon cable begins with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Fiber Identification Management For Splicing And Maintenance

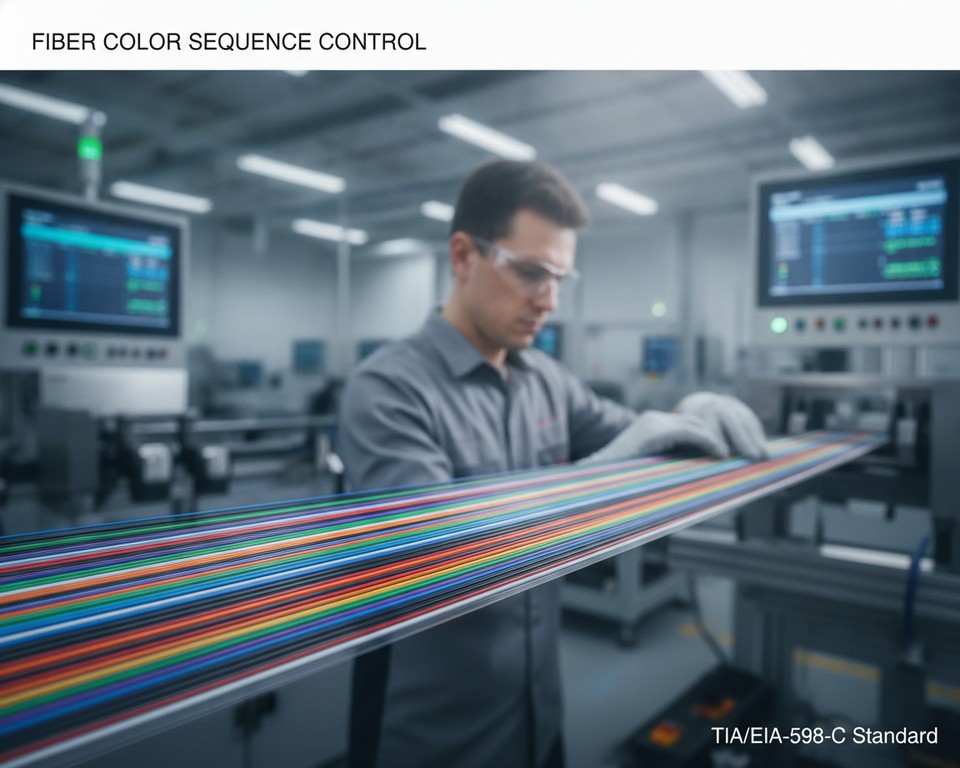

A clearly defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
For higher fiber counts, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Ribbon Fiber Position | Identification Color | Process Purpose |
|---|---|---|
| 1 | Blue | Marks the first position in the standard color order |
| 02 | Orange | Allows quick identification during handling |
| 3 | Green | Helps preserve the established fiber order |
| 04 | Standard brown | Helps verify subunit placement |
| 05 | Standard slate | Supports identification around the middle of the sequence |
| 6 | Standard white | Provides strong visual contrast for inspection |
| 7 | Red | Improves traceability in splicing records |
| 8 | Standard black | Supports sequence identification inside splice trays |
| 09 | Yellow | Supports rapid identification during restoration work |
| Position 10 | Standard violet | Separates late-sequence fibers clearly |
| Position 11 | Standard rose | Assists identification in high-count ribbon systems |
| Position 12 | Standard aqua | Completes the standard color order |
Preventing Fiber Twisting And Uneven Tension
Payoff systems and guides are essential in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Production personnel carefully check tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
Intermittent Bond Application With UV Curing
Intermittent bonding integrates fiber subunits without solidifying the ribbon into a rigid form. This method allows dense routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Bond Application At Controlled Intervals
Equipment applies bonds at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
The bond applicator delivers a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends reduce sudden stress transitions when the cable bends or twists.
Creating Strong, Flexible Bond Interfaces
Wet-on-wet bonding involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting gradient influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features improve resistance to bond peeling while facilitating separation when required.
Controlling Curing Performance
UV lamps must provide consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Operators closely monitor bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Quality Control For Flexible Flat Cable And Fiber Ribbon Output
Verifying every flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Regular inspections are critical in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Bond Spacing, Ribbon Width, And Thickness Inspection
Bond spacing remains a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection procedures are used to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Quality Control Point | Inspection Requirement | Process Value |
|---|---|---|
| Fiber identification | Fiber count, color sequence, and position | Supports correct splicing and maintenance work |
| Bonding pattern | Bond placement, separation distance, and subunit joining | Preserves flexibility while maintaining fiber order |
| Ribbon geometry | Width, thickness, and flatness | Ensures the ribbon works with downstream handling and splicing tools |
| Surface condition | UV curing condition, coating coverage, and surface defects | Helps minimize handling damage during winding |
Optical And Mechanical Ribbon Testing
Mechanical evaluations examine on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical inspection involves evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Optical attenuation checks and handling evaluations are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Efficiency, Automation, And Precision Winding
Efficient ribbon manufacturing depends on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Process Data Monitoring And Line Synchronization
Production controls coordinate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Production records track fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Controlled bond timing maintains regular intervals between bond points.
- Dimension monitoring identifies width and thickness variations quickly.
- Take-up data helps with production lot tracking and later processing.
Ribbon Winding For Downstream Cable Production
A precision cable winder helps ensure the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Completed ribbon packages can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For custom ribbon cables, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Process Area | Control Focus | Resulting Benefit |
|---|---|---|
| Payoff section | Controlled tension and accurate color sequencing | Correct ribbon positioning in downstream cable construction |
| Bonding stage | Consistent spacing and resin volume | Predictable ribbon flexibility during handling |
| UV curing | Stable UV lamp output and cure exposure | Properly cured bonds before ribbon winding |
| Cable winding system | Uniform traverse with controlled spool tension and layering | Smooth payout for central tube or loose tube loading |
Applications, Splicing, And Connector Planning For Ribbon Cable
Ribbon fiber plays an important role in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A meticulously planned ribbon cable assembly enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Mass Fusion Splicing Advantages
A ribbon fusion splicer allows the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
This method reduces handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
In contrast, loose tube cable necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Connection Planning For Dense Links
Multi-fiber links frequently employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
System planning must also account for transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Connection Planning Item | Primary Control | Typical Network Use |
|---|---|---|
| Number of ribbon fibers | Required splice capacity and cassette configuration | Backbone links using 12-fiber or 24-fiber ribbons |
| MPO or MTP cable connector | Polarity, gender, and port compatibility | High-density data center and 5G equipment-room connections |
| Harness or fanout cable | Transition from multi-fiber connections to single-fiber ports | Switch connections and patching fields |
| Link loss budget | Maximum allowable loss through connectors, splices, and cable length | High-speed optical transmission routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Production Lines
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to support consistent manufacturing, facilitate clear operator control, and enable seamless integration into production lines.
For manufacturers planning an intermittent bonded ribbon production line, SHWY provides equipment for each stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Experience In Optical Fiber And Cable Machinery
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
SHWY became independent in 2020, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
SHWY Production Equipment Portfolio
SHWY offers a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For fiber ribbon manufacturing projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
Additional SHWY equipment includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Conclusion
An intermittent bonded ribbon production line integrates fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step helps preserve fiber sequence while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resultant ribbon cable supports efficient mass fusion splicing and organized fiber management. It is well suited to applications involving high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Comprehensive project planning reaches beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
